Whether it’s overcoming noise or punching through a bit more near-LOS foliage, who wouldn’t want an improved link-budget? The A6 uses a series of integrated antennas and introduces a set of new baseband features that provide 10 dB signal improvement without an increase in the device form-factor.

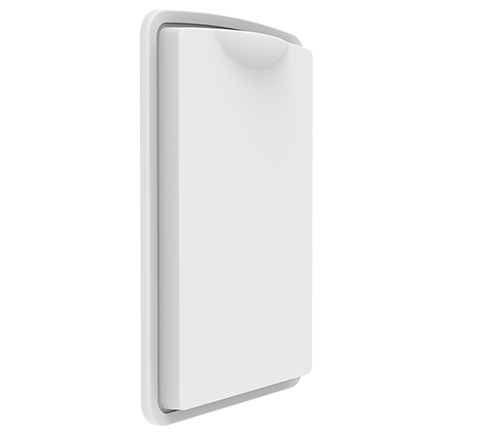

A6
High Throughput
The A6 redefines efficiency, performance, capacity, and interference handling for unlicensed PTMP deployments. With advanced features like 1024-QAM, 8-stream beamforming, and support for up to 160 MHz of bandwidth, it delivers significant improvements in reliability and performance for the unlicensed 5/6 GHz band.
Download Specs
Key Specs
6
Gbps
Aggregate Speed
~8
km
Link Distances
5.15 - 6.425
GHz
Frequency
6
Gbps
Aggregate Speed
~8
km
Link Distances
5.15 - 6.425
GHz
Frequency
Applications
Value
Improved Link Budget
Reliability
Reliable in Noisy Environments
Unlicensed bands usually have crowded spectrum in cities, and even at tower collocation sites in rural areas. The A6 includes advanced noise fighting techniques to make it easier than ever to overcome noisy conditions and deliver reliable services in unlicensed spectrum.
Flexibility
Easy to Deploy
The A6 features an internal switch which includes a PoE port and two 10 Gbps SFP+ ports, allowing seamless interconnectivity without an external switch. A dedicated 48 VDC power input eliminates extra Ethernet runs when deploying fiber, helping Mimosa customers avoid the need for complex and costly power and switching equipment between backhauls and access points.
Performance
Speed and Capacity for Dense Markets and Crowded Towers
Th A6 competes with fiber speed offerings in both urban and rural tower sites. Wi-Fi 6E technologies included within the A6 offer 60 bps/Hz spectral efficiency and high capacity 8x8 multi-user MIMO technology, ensuring sufficient AP capacity to handle large populations at almost any rural tower location, or even in the most dense city urban environments
FAQ
A6 Access Point
Dimensions
490 mm h x 295 mm w x 75 mm d
3.95 kg (8.7 lbs)
Power Consumption
40 W Max
IP Rating
IP67
Depending on the environment and spectrum, the A6 is suitable for short to mid range deployments.
The A6 has an integrated 16 dBi antenna with 24 dBi adaptive beamforming.
The C6x client radio will work best with the A6 to deliver gigabit subscriber speeds.
