The Mimosa B5x stands out as one of the industry's fastest unlicensed backhaul solutions, capable of delivering up to 1.5 Gbps (IP). With 160 MHz of aggregate channel capacity and GPS Sync mode, it offers unparalleled flexibility and performance for short to medium-range relay and tower links, as well as licensed 4.9 GHz spectrum applications. This makes it an ideal choice for high-capacity, reliable connections in various network environments at a fraction of the cost of fiber.
B5x
Unmatched Performance and Versatility

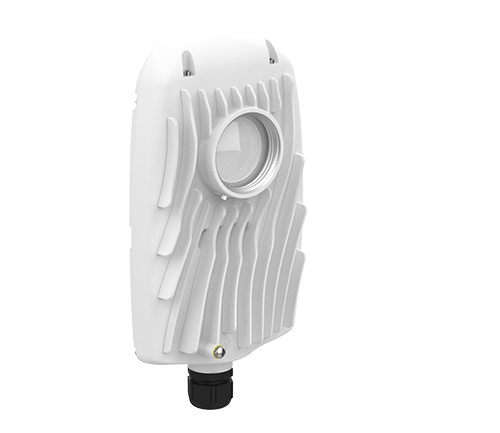

The Mimosa B5x is one of the industry’s fastest unlicensed, point-to-point (PTP), backhaul solutions. It’s ideal for short to medium range relay and tower links, custom-engineered co-location, and licensed 4.9 GHz spectrum. It’s modular, with the ability to connect X-series compatible twist-on antennas (12 dBi horn, 16 dBi horn, 20 dBi dish, 25 dBi dish, or 30 dBi dish).
Download Specs
Key Specs
1.5
Gbps
Aggregate Speed
Short-to-Long Range
Link Distances
8-30
dBi
Gain
4.9 - 6.425
Frequency
1.5
Gbps
Aggregate Speed
Short-to-Long Range
Link Distances
8-30
dBi
Gain
4.9 - 6.425
Frequency
Applications
Value
Exceptional Speed and Flexibility
Reliability
Superior Reliability and Spectrum Efficiency
Equipped with custom-engineered multi-channel and auto-everything technology, the B5x addresses unlicensed spectrum interference effectively, functioning as two smart links in one radio. Its high-precision GPS Sync technology allows for the reuse of the same channel network-wide, making it spectrum-friendly and enabling the addition of more capacity to more sites without wasting spectrum. This ensures consistent, reliable performance in demanding conditions.
Design
Robust Design and Ease of Monitoring
The IP67 design of the B5x ensures it can withstand the harshest environmental conditions, making it ultra-rugged and dependable. Additionally, the system's ease of monitoring link health and identifying potential problems simplifies network management. Instant link monitoring capabilities provide network administrators with the insights needed to maintain optimal performance and swiftly address any issues that arise.
Link Planning
Going the Distance
The Mimosa Design Tool streamlines planning and validating PTP and PTMP deployments with a few clicks on a map. This intuitive tool simplifies connectivity evaluation by using visual aids like terrain elevation to estimate performance and reliability, automatically accounting for factors such as weather and tree clutter.
Twist-on Antennas
Flexible Antenna Options
The Mimosa's X-Series of products are the industry’s most versatile, modular, radio solutions with six gain options (8, 12, 16, 20, 25, or 30 dBi). The ultra-rugged solution provides extended frequency operation from 4.9–6.4 GHz, with best-in-class noise immunity.
FAQ
B5x Backhaul Radio
Dimensions
241mm h x 139 mm w x 76 mm d
1.4 kg (3.1lbs)
Power Consumption
20 W Max
Max Output Power
30 dBm (single frequency)
27 dBm (dual frequency)
IP Rating
IP67
Yes. You can use the base B5x 8 dBi radio without an antenna for short distance links. Please remove the locking screw from the twist-on screws to serve as a drain hole.
This depends on the antenna size and regulatory power settings. The B5x and all the X-series (N5-X) antenna options are available in Mimosa’s Design Tool. It’s free and very easy to model a PTP link, give it a try at: https://cloud.mimosa.co .
