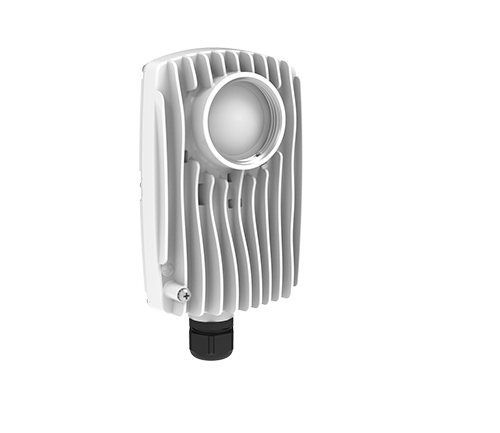

Mimosa’s rugged C6x redefines affordable high-speed connectivity with versatile Point-to-Point and Point-to-Multipoint capabilities, delivering up to 2.0 Gbps. Leveraging the latest wireless technologies and new 6 GHz bands, the C6x achieves ultra-low latency with advanced interference reduction for high reliability in challenging environments.
C6x
Super Fast and Super Flexible
The Mimosa C6x: a powerful fixed wireless radio delivering up to 1.75 Gbps in Point-to-Multipoint and 2.0 Gbps in Point-to-Point modes. With adaptable range options and a durable IP67-rated design, the C6x is built for seamless client and backhaul applications, offering reliable, high-speed connectivity in any environment.
Download Specs
Key Specs
Up to 2.0
Gbps
Aggregate Speed
Short-to-Long Range
Link Distances
8-30
dBi
Gain
5.15 - 6.425
GHz
Frequency
Up to 2.0
Gbps
Aggregate Speed
Short-to-Long Range
Link Distances
8-30
dBi
Gain
5.15 - 6.425
GHz
Frequency
Value
Price Performance Leader
Performance
Take PTMP to a New Level
Achieving up to 1.75 Gbps in PTMP (point-to-multipoint) deployments, the C6x pairs with beamforming technologies on the A6 access point to enable significant subscriber scaling, advanced noise management, and access to the new, low-noise 6 GHz band.
Design
Ultra-Rugged
The C6x is IP67 rated, which means it can withstand the harshest elements and environments. Coupled with next-gen RF noise fighting features and new low-noise 6 GHz band support, the C6x leads the way in dependable connectivity.
Link Planning
Going the Distance
The Mimosa Design Tool simplifies PTP and PTMP connectivity evaluation by calculating expected performance and reliability with visual aids like terrain elevation. It provides precise installation reports and heatmap-based access point coverage planning, accounting for factors like weather and interference.
Flexible Antenna Options
The Mimosa's X-Series of products are the industry’s most versatile, modular, radio solutions with six gain options (8, 12, 16, 20, 25, or 30 dBi). The ultra-rugged solution provides extended frequency operation from 4.9–6.4 GHz, with best-in-class noise immunity.
C6x FAQ
Dimensions
175mm h x 70 mm w x 61 mm depth
.7 kg (1.54 lbs)
Power Consumption
20 W Max
Max Output Power
24 dBm
IP Rating
IP67
Yes. You can use the base C6x 8 dBi radio without an antenna for short distance links. Please remove the locking screw from the twist-on screws to serve as a drain hole.
This depends on the antenna size and regulatory power settings. The C6x and all the X-series antenna options are available in Mimosa’s Network Design Tool (NDT). It’s free and very easy to model a link, give it a try at: https://design.mimosa.co/designtool/ndt
Yes, the Fleximount works for the C6x and N5-X12, N5-X16 and N5-X20 and the N5-X25 (25 dBi dish). The Fleximount XL does not work with the N5-X30kp dish.
