Delivering nearly one gigabit of low latency IP traffic in a single direction, the Mimosa B24 is the industry’s price performance leader in unlicensed 24 GHz backhaul. Designed from the ground-up using reliable, high volume components, the B24 achieves incredible performance at a disruptive price that fits the economics of broadband providers and enterprises in suburban and urban markets.
B24
Reliable 24 GHz Unlicensed Gigabit Performance

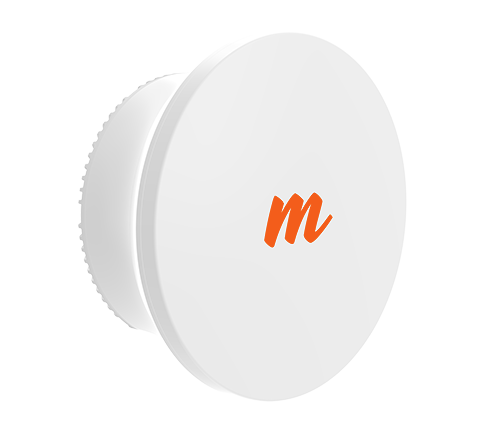

The Mimosa B24, a lightweight and compact radio, breaks existing barriers of price, size, performance, and power efficiency. It offers superior performance in the less crowded, unlicensed 24 GHz band, making it an exceptional choice for high-speed wireless communication.
Download Specs
Key Specs
1
Gbps
Aggregate Speed
Mid Range
Link Distances
33
dBi
Gain
24 - 24.25
GHz
Frequency
1
Gbps
Aggregate Speed
Mid Range
Link Distances
33
dBi
Gain
24 - 24.25
GHz
Frequency
Value
Exceptional Value and High Performance
Capacity
Gigabit on Demand
To meet modern internet traffic needs where nearly 90% of the peak evening traffic demand can be in the download direction, the B24 dynamically adapts to changing demands using Auto-TDMA technology. Low-latency Gigabit throughput can be directed either upstream or downstream as needed to maximize spectrum utilization throughout the day. Legacy FDD radios are limited to symmetric traffic usage, leaving vast amounts of spectrum constantly underutilized.
Reliability
Unparalleled Reliability

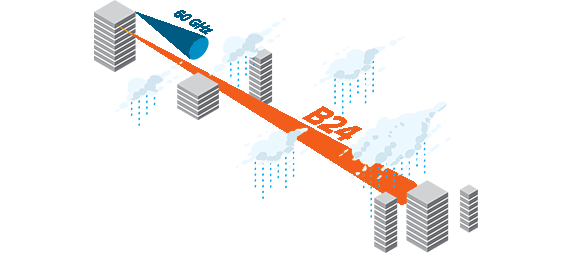

Don’t be distance-limited by higher frequency microwave technology. Use the B24 to avoid the congested 5 GHz spectrum and deliver superior reliability, even with rain, at practical distances up to 3 km (2 mi).
Highly Efficient
Compact and Power Efficient
Small and beautiful, the Mimosa B24 stands out with its fraction of the weight, size, and power of alternative solutions, making it incredibly easy to install. Its compact design fits discreetly into any visually-sensitive area. Additionally, the B24 is solar-friendly, consuming a mere 19.5W, making it ideal for applications requiring low-cost battery backup.
Ethernet Redundancy
Fiber Ready
For flexibility, redundant Ethernet and fiber connections are supported, a feature that was previously only available in stratospherically priced outdoor products.
TDMA GPS SYNC
Sync that Works
Like other Mimosa products, GPS synchronization allows collocated B24 radios to share the same channel, permitting up to eight links to operate at the same site, each running at 1.5 Gbps.
B24 FAQ
Dimensions
260 mm h x 260 mm w x 134 mm d
2.76 kg (6lbs)
Max Power Consumption
19.5 W Max
IP Rating
IP67
Gain
33 dBi
