Deliver industry-leading unlicensed point-to-point connectivity together with the N5-X antenna, offering up to 3.0 Gbps (IP) across various models (12 to 30+ dBi). Benefit from 320 MHz aggregate channel capacity and GPS Sync mode for peak performance flexibility.
B6x
Extreme Speed and Super Value

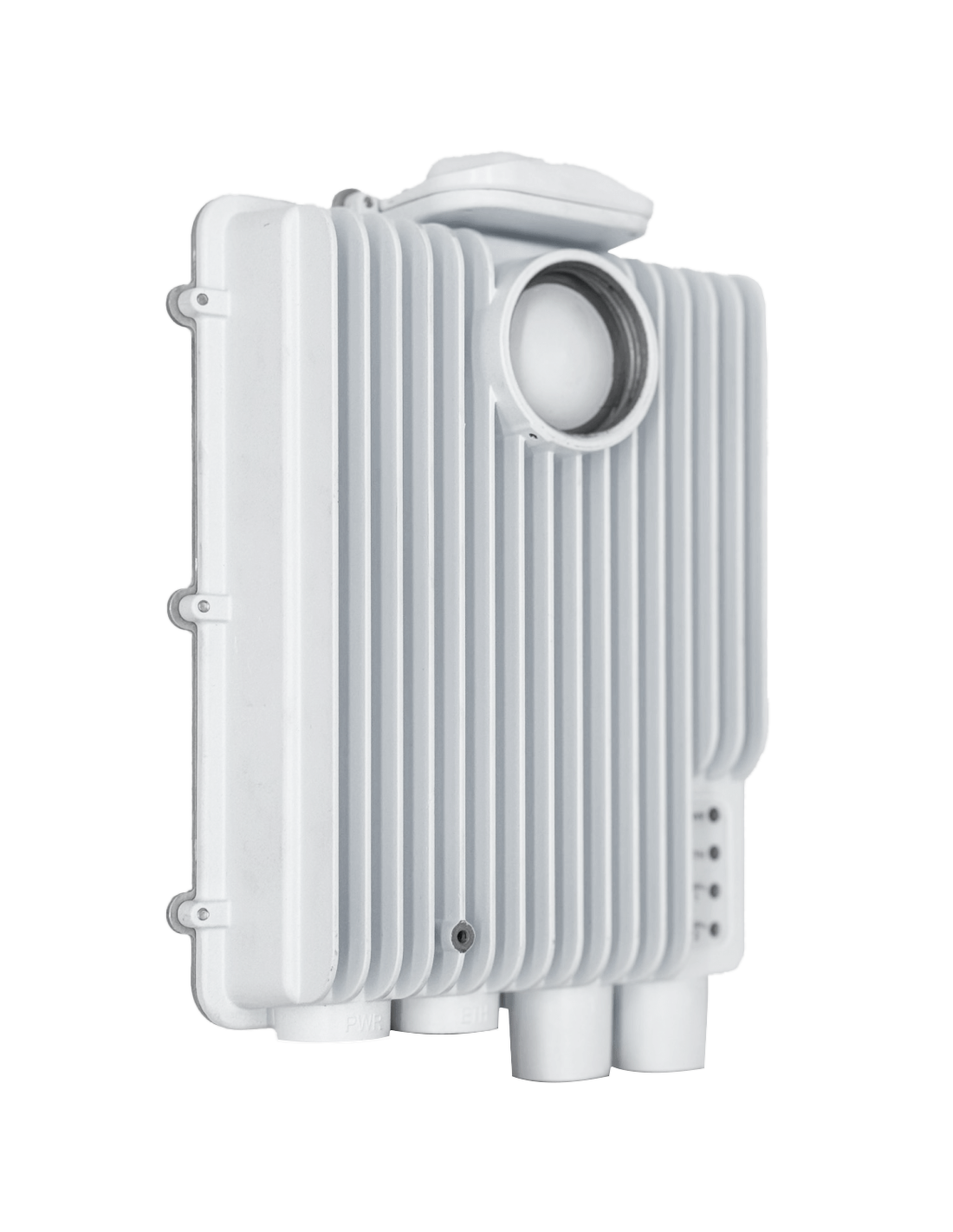

The Mimosa B6x is one of the industry’s fastest unlicensed backhaul solutions. It’s ideal for short to medium range relay and tower links, custom-engineered collocation, and unlicensed 5.15-6.4 GHz spectrum. It’s modular, with the ability to connect N5-X compatible twist on antennas (dish—not included).
Download Specs
Key Specs
3.0
Gbps
Aggregate Speed
Short-to-Mid Range
Link Distances
8-30
dBi
Gain
5.15 - 6.425
GHz
Frequency
3.0
Gbps
Aggregate Speed
Short-to-Mid Range
Link Distances
8-30
dBi
Gain
5.15 - 6.425
GHz
Frequency
Flexibility
Exceptional Speed and Flexibility
Reliability
Fast and Reliable
With the latest in Wi-Fi 6 technologies, and access to new 6 GHz bands, the B6x achieves extremely low latency with speeds of up to 3.0 Gbps and high reliability with noise fighting features.
Design
Robust Design and Ease of Monitoring
Monitor link health effortlessly with the Mimosa Management Platform, which provides instant assessments and problem identification. The ultra-rugged, carrier-grade IP67 design ensures the B6x withstands the harshest environmental conditions.
Link Planning
Going the Distance
The Mimosa Design Tool streamlines planning and validating PTP and PTMP deployments with a few clicks on a map. This intuitive tool simplifies connectivity evaluation by using visual aids like terrain elevation to estimate performance and reliability, automatically accounting for factors such as weather and tree clutter.
Twist-on Antennas
Flexible Antenna Options
The Mimosa's X-Series of products are the industry’s most versatile, modular, radio solutions with six gain options (8, 12, 16, 20, 25, or 30 dBi). The ultra-rugged solution provides extended frequency operation from 4.9–6.4 GHz, with best-in-class noise immunity.
B6x FAQ
Dimensions
290 mm h x 167 mm w x 89 mm d
1.7 kg (3.7lbs)
Power Consumption
30 W Max
Max Output Power
30 dBm (single frequency)
27 dBm (dual frequency)
IP Rating
IP67
Gain
8 dBi (native)
12–30 dBi (with antennas)
Yes. You can use the base B6x 8 dBi radio without an antenna for short distance links. Please remove the locking screw from the twist-on screws to serve as a drain hole.
This depends on the antenna size and regulatory power settings. The B6x and all the X-series (N5-X) antenna options are available in Mimosa’s Design Tool. It’s free and very easy to model a PTP link, give it a try at: https://cloud.mimosa.co .
Currently the B6x works with Mimosa's N5X 12, 16, 20, and 25 dBi antennas.
For anything larger than the 25 dBi antenna, including Mimosa's N5-X30kp, the B6x will require (2) X2C waveguide adapters and (2) coaxial jumpers.
